E.H. Scott Worlds Record Shield Grid 9 (1928)

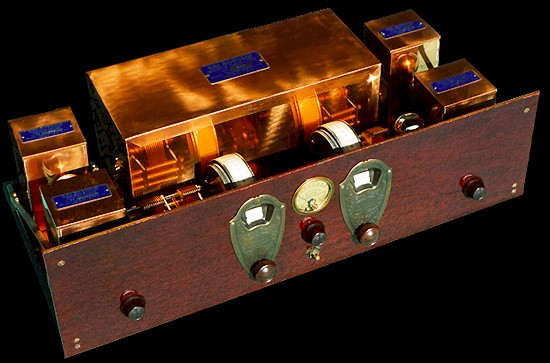

E.H. Scott Worlds Record Shield Grid 9
Photos donated by Michael Feldt.
Visit Michael's web site at http://www.indianaradios.com/.

To see all the photos Michael has contributed to the Archives, click here.
There were two versions of this superheterodyne radio made, the 9 which had a 8 tube chassis and a three tube power supply/amplifier and the 9B which had 9 tubes on the chassis and no power supply/amplifier. This was Scott's first radio to use the new screen grid tubes (UX-222) that had just come out earlier that year. I acquired this set in 1990 from a Washington State audio enthusiast in a trade for a Counterpoint D90 amplifier.

Tube Line Up:
01A...R.F. Amplifier
01A...1st. Detector / Mixer
40...Oscillator
22...1st. I.F. Amplifier
22...2nd. I.F. Amplifier
22...3rd. I.F. Amplifier
01A...2nd. Detector
12A...Audio Driver
50...Audio Output (Located on separate power supply / amplifier)
81 x 2...Rect. (Located on separate power supply / amplifier)
