Radio Attic's Archives - E.H. Scott Phantom Deluxe (1939)

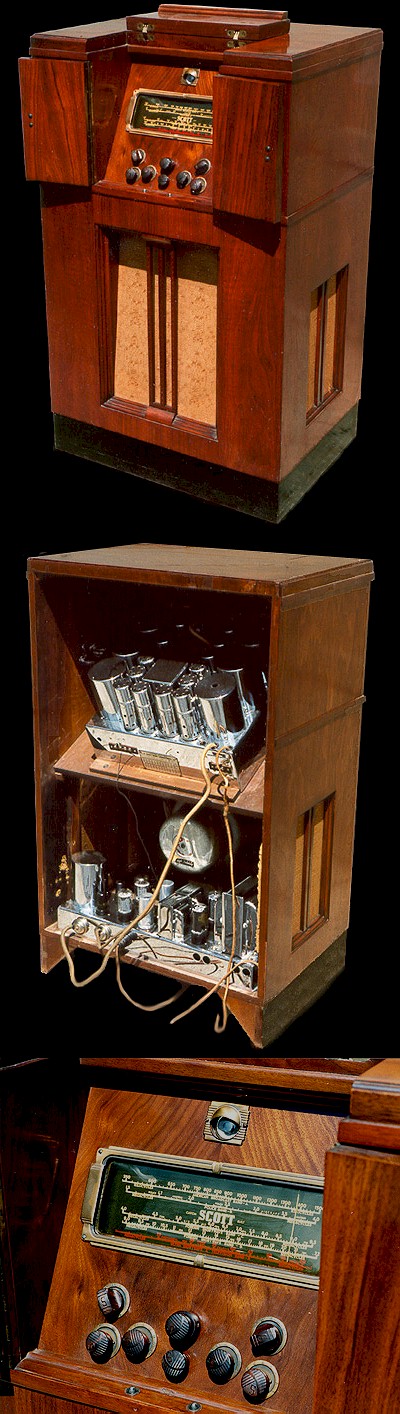

E.H. Scott Phantom Deluxe (1939)

Photos donated by Michael Feldt.
Visit Michael's web site at http://www.indianaradios.com/.

To see all the photos Michael has contributed to the Archives, click here.

Tube Line Up

Tuner:
6U7G...R.F. Amplifier
6L7G...1st. Detector / Mixer
6J5G...Heterodyne Oscillator
150...Voltage Rectifier
6B8G...R.F. AVC
6K7G...1st. I.F. Amplifier
6K7G...2nd. I.F. Amplifier
6K7G...3rd. I.F. Amplifier
6B8G... I.F. AVC Rectifier / Amplifier
6H6G...Noise Limiter
6E5G...Tuning Indicator
6K7G...1st. AudioScratch 6J5G...Audio Inverter
6B8G...Scratch Suppressor Rectifier / Amplifier
6J7G...Scratch Suppressor Amplifier

Power Supply/Amplifier:
5U4G x 2...Rectifier
6J5G X 2... 2nd. Audio Push - Pull
6L6G x 2...Audio Output Push - Pull
